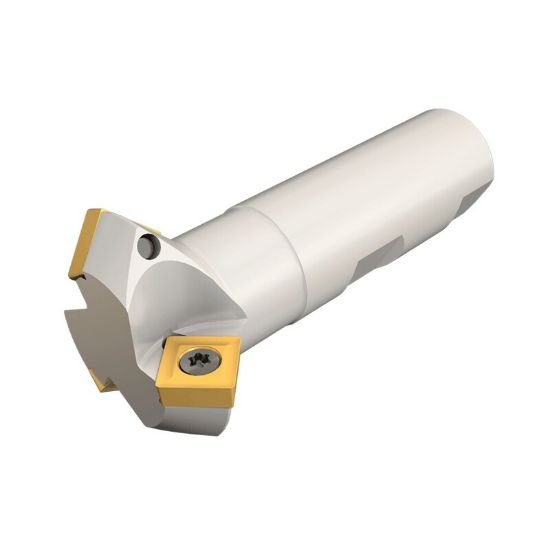

Picture of Iscar E45 D.50-W.75 Milling Cutter 45.0° 0.500 Diameter Weldon 0.750 3.940 OAL 1 Flute

Iscar E45 D.50-W.75 Milling Cutter 45.0° 0.500 Diameter Weldon 0.750 3.940 OAL 1 Flute

Part Number: ISC3110003 ISO: E45 D.50-W.75 ANSI:E45 D.50-W.75
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012660
Vendor: Sussex Tool and Supply
$254.40

Description

ISCAR 3110003 Square 45.0°, Chamfer Mill, Back Chamfer End Mill Weldon 0.7500 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000213
Dimensions & Sizing
Overall Length 3.9400 100.08MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 32
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.4720 11.99MM
Depth Of Cut Max 0.2700
Cut Dia Max 0.9100 23.11MM
Materials & Finish
Tool Material Steel
