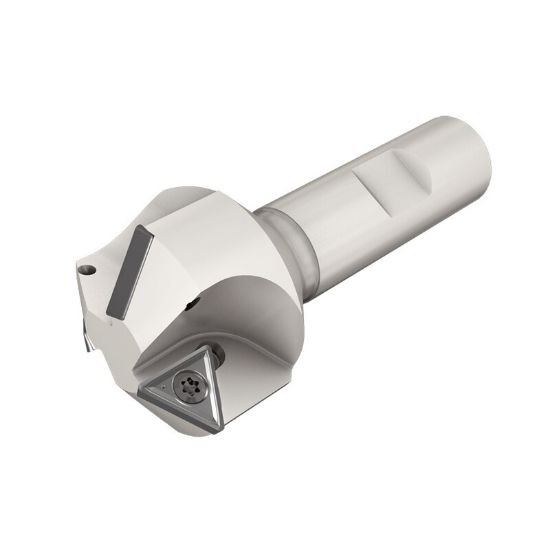

Picture of Iscar E30 D .62-W .75 Milling Cutter 30.0° 0.625 Diameter Weldon 0.750 3.540 OAL 3 Flute

Iscar E30 D .62-W .75 Milling Cutter 30.0° 0.625 Diameter Weldon 0.750 3.540 OAL 3 Flute

Part Number: ISC3110290 ISO: E30 D .62-W .75 ANSI:E30 D .62-W .75
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012663
Vendor: Sussex Tool and Supply
$348.48

Description

ISCAR 3110290 Triangle 30.0°, Chamfer Mill End Mill Weldon 0.7500 Positive 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TP
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 3.5400 89.92MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "22"
Geometry & Angles
Cutting Edge Angle 30.0°
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.1500
Cut Dia Max 1.6100 40.89MM
Materials & Finish
Tool Material Steel
