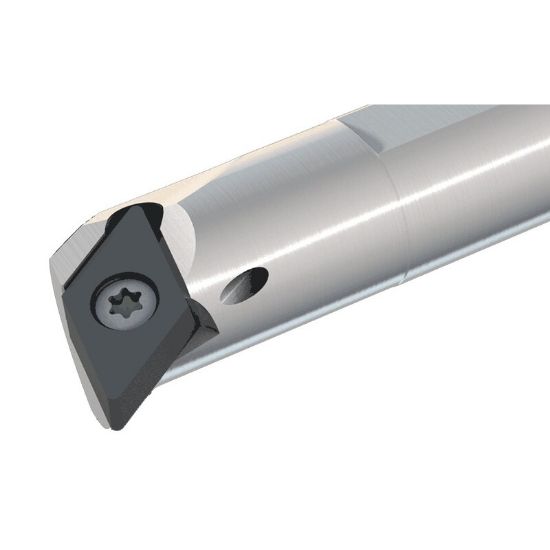

Picture of ISCAR E20S-SDXNR-07 Turning Boring Bar 55.0° Insert 0.787 Boring Bar

ISCAR E20S-SDXNR-07 Turning Boring Bar 55.0° Insert 0.787 Boring Bar

ANSI: E20S-SDXNR-07

ISO: E20S SDXNR-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6989916
Delivery date: 3-5 days
$1,090.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole.

Details

Boring bars with steel and carbide shanks carrying the DNGP 22.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Sold by Pieces 1
Shipping State Texas
Insert Type Negative
Additional Key Information 1 Boring Bar
Insert Application General Purpose
Insert/Tool Tool
Additional Key Information 2 55.0°
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7874 20.00MM
Clearance Angle 15.5°
Machine Side Connection Size 0.7874 20.00MM
Lead Angle 100°
Machine Side Connection Type Boring Bar
Overall Len 9.8430 250.01MM
Insert Size Ic 07 "22"
Machine Side BBAR0.7874
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
