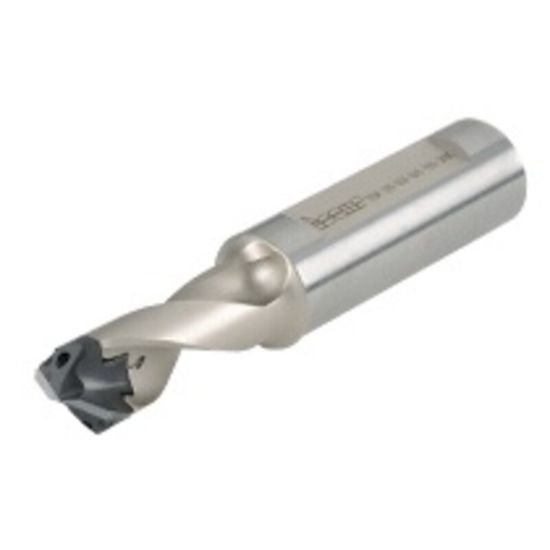

Picture of Iscar DSM 0669-100-075B-1.5D 0.669" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Iscar DSM 0669-100-075B-1.5D 0.669" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Part Number: ISC3201550 ISO: DSM 0669-100-075B-1.5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111517
Vendor: Sussex Tool and Supply
$294.62

Description

ISCAR 3201550 0.669" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6693 17.00MM
Flute Length 1.0200 25.91MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.6692 17.00MM
Cut Dia Max 0.7050 17.91MM
Materials & Finish
Tool Material Steel
