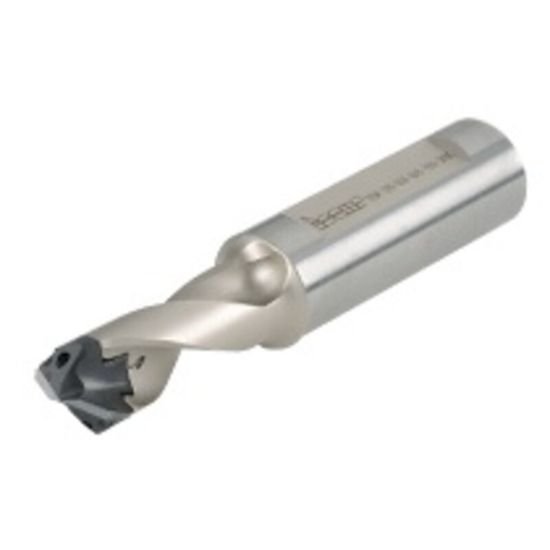

Picture of Iscar DSM 0591-089-075B-1.5D 0.59" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Iscar DSM 0591-089-075B-1.5D 0.59" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Part Number: ISC3201548 ISO: DSM 0591-089-075B-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111515
Vendor: Sussex Tool and Supply
$270.73
ISCAR 3201548 0.59" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.7500 19.05MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Flute Length 0.9100 23.11MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.6260 15.90MM
