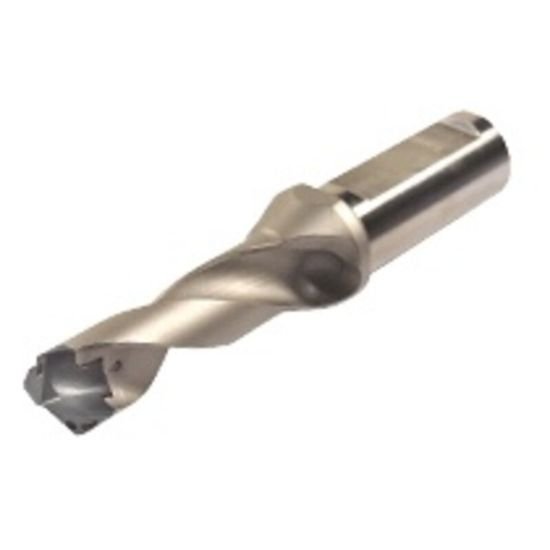

Picture of Iscar DSM 0551-275-063A-5D 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 5xD

Iscar DSM 0551-275-063A-5D 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3201041 ISO: DSM 0551-275-063A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111417
Vendor: Sussex Tool and Supply
$340.20
ISCAR 3201041 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.3800 136.65MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Type Of Tool Drill
Flute Length 2.7500 69.85MM
Cut Dia Min 0.5512 14.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5870 14.91MM
