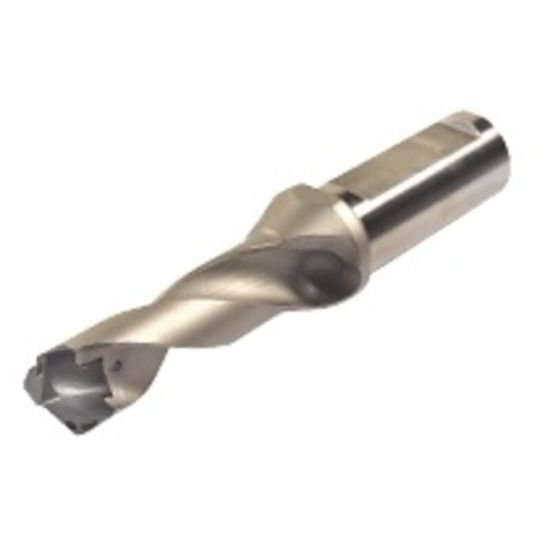

Picture of Iscar DSM 0551-165-063A-3D 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 3xD

Iscar DSM 0551-165-063A-3D 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201040 ISO: DSM 0551-165-063A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111416
Vendor: Sussex Tool and Supply
$290.17
ISCAR 3201040 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.2600 108.20MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Type Of Tool Drill
Flute Length 1.6500 41.91MM
Cut Dia Min 0.5512 14.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5870 14.91MM
