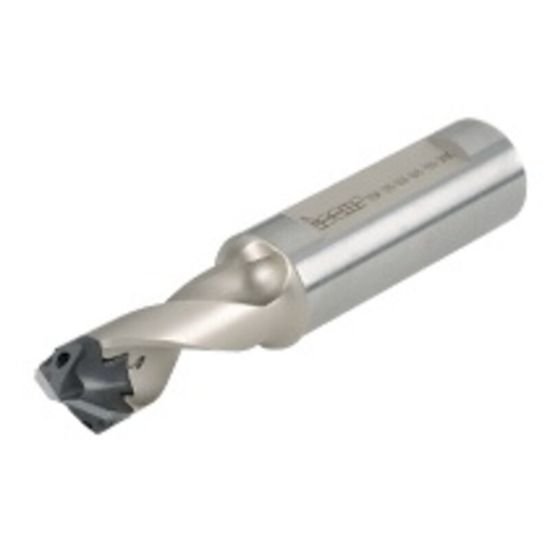

Picture of Iscar DSM 0551-083-063B-1.5D 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Iscar DSM 0551-083-063B-1.5D 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Part Number: ISC3201547 ISO: DSM 0551-083-063B-1.5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111514
Vendor: Sussex Tool and Supply
$278.88

Description

ISCAR 3201547 0.551" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5512 14.00MM
Flute Length 0.8300 21.08MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.5512 14.00MM
Cut Dia Max 0.5870 14.91MM
Materials & Finish
Tool Material Steel
