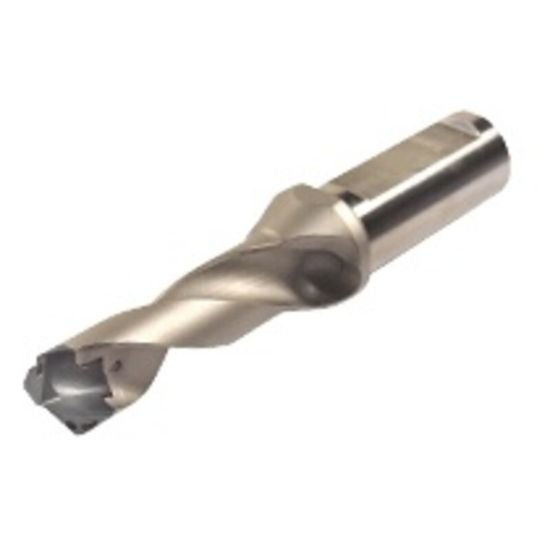

Picture of Iscar DSM 0512-153-063A-3D 0.512" Indexable Head Drills with Coolant Holes, Drilling Depth 3xD

Iscar DSM 0512-153-063A-3D 0.512" Indexable Head Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201069 ISO: DSM 0512-153-063A-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111422
Vendor: Sussex Tool and Supply
$309.50

Description

ISCAR 3201069 0.512" Indexable Head Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.8100 96.77MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5118 13.00MM
Flute Length 1.5300 38.86MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.5118 13.00MM
Cut Dia Max 0.5470 13.89MM
Materials & Finish
Tool Material Steel
