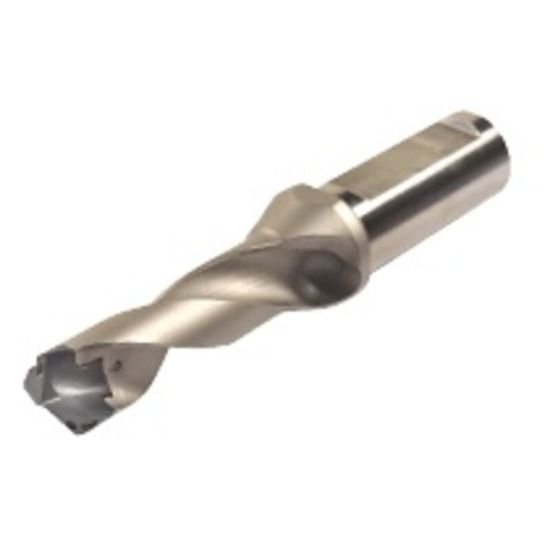

Picture of Iscar DSM 0394-196-063A-5D 0.394" Indexable Head Drills with Coolant Holes, Drilling Depth 5xD

Iscar DSM 0394-196-063A-5D 0.394" Indexable Head Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3201058

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111419
Vendor: Sussex Tool and Supply
$0.00
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.6250 15.88MM - 5/8
Cutter Type Drill
Overall Length 4.4500 113.03MM
Machine Side (Toolpost) WELDON0.6250, BBAR0.6250
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State TEXAS
Type Indexable Drill Single Insert
Family Group Cham-Drill-Jet
Tool Material Steel
Mach Side Connection Size 0.6250 15.88MM - 5/8
Tool Diameter 0.3937 10.00MM
Cut Diameter Min 0.3937 10.00MM
Coolant Thru Thru Coolant
Cut Diameter Max 0.4290 10.90MM
Drill Type Indexable Drill
Made In USA No
Flute Length 1.9600 49.78MM
Diameter Deep 5.0x Dia
