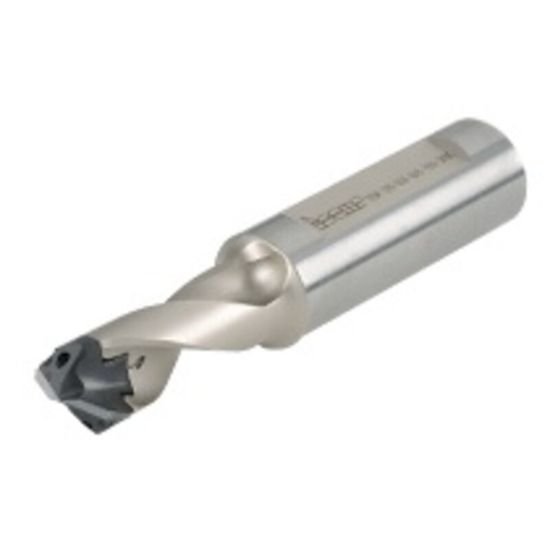

Picture of Iscar DSM 0394-059-063B-1.5D 0.394" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Iscar DSM 0394-059-063B-1.5D 0.394" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD

Part Number: ISC3201543 ISO: DSM 0394-059-063B-1.5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111511
Vendor: Sussex Tool and Supply
$251.14

Description

ISCAR 3201543 0.394" Indexable Head Drills with Coolant Holes, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Flute Length 0.5900 14.99MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.3937 10.00MM
Cut Dia Max 0.4290 10.90MM
Materials & Finish
Tool Material Steel
