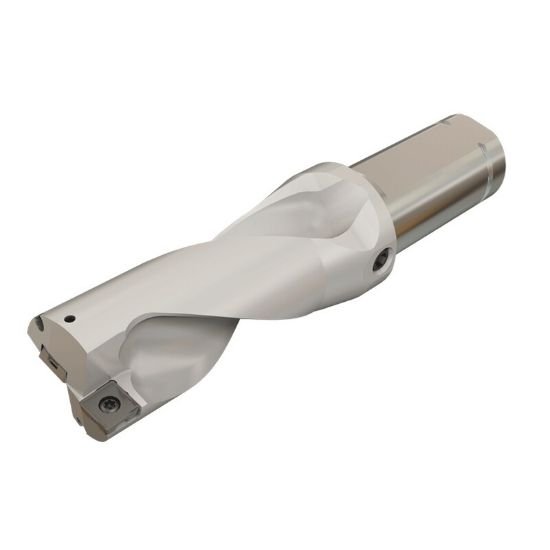

Picture of Iscar DR2344-4687-150-16-2D-N 2.344" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD

Iscar DR2344-4687-150-16-2D-N 2.344" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD

Part Number: ISC3201821

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111557
Vendor: Sussex Tool and Supply
$987.00
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.5000 38.10MM - 1-1/2
Cutter Type Drill
Overall Length 9.1900 233.43MM
Machine Side (Toolpost) BBAR1.5000, WELDON1.5000
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State TEXAS
Type Indexable Drill Multi Insert
Family Group Dr-Twist
Tool Material Steel
Mach Side Connection Size 1.5000 38.10MM - 1-1/2
Tool Diameter 2.3438 59.53MM - 2-11/32
Cut Diameter Min 2.3438 59.53MM - 2-11/32
Coolant Thru Thru Coolant
Cut Diameter Max 2.3440 59.54MM
Drill Type Indexable Drill
Made In USA No
Flute Length 4.6900 119.13MM
Diameter Deep 2.0x Dia
