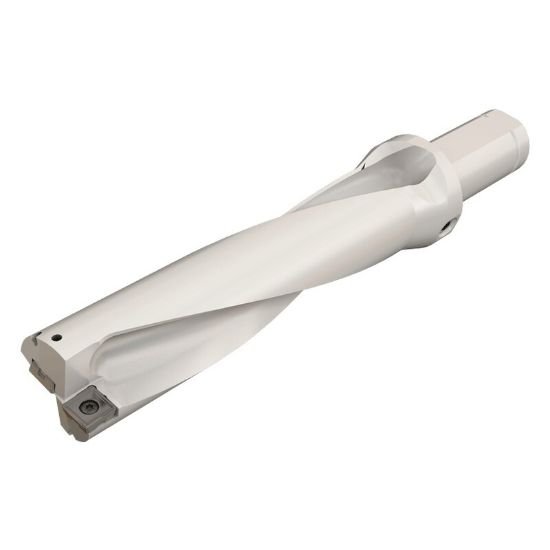

Picture of Iscar DR2125-8500-150-16-4D-N 2-1/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Iscar DR2125-8500-150-16-4D-N 2-1/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Part Number: ISC3201512 ISO: DR2125-8500-150-16-4D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111496
Vendor: Sussex Tool and Supply
$1,110.00
ISCAR 3201512 2-1/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.5000 38.10MM
Overall Length 12.9200 328.17MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 2.1250 53.98MM - 2-1/8
Type Of Tool Drill
Flute Length 8.5000 215.90MM
Cut Dia Min 2.1250 53.98MM - 2-1/8
Dia Deep 4.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Cut Dia Max 2.2050 56.01MM
