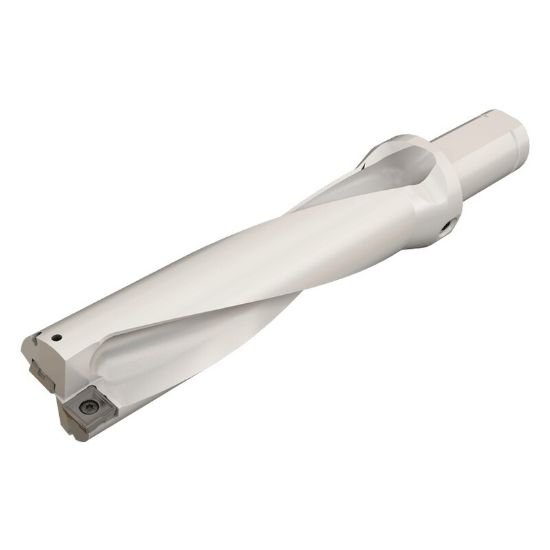

Picture of Iscar DR1687-6748-150-12-4D-N 1.687" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Iscar DR1687-6748-150-12-4D-N 1.687" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Part Number: ISC3201506 ISO: DR1687-6748-150-12-4D-N
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111490
Vendor: Sussex Tool and Supply
$993.98

Description

ISCAR 3201506 1.687" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 11.2100 284.73MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Dia 1.6875 42.86MM - 1-11/16
Flute Length 6.7500 171.45MM
Dia Deep 4.0x Dia
Performance & Capacity
Cut Dia Min 1.6875 42.86MM - 1-11/16
Materials & Finish
Tool Material Steel
