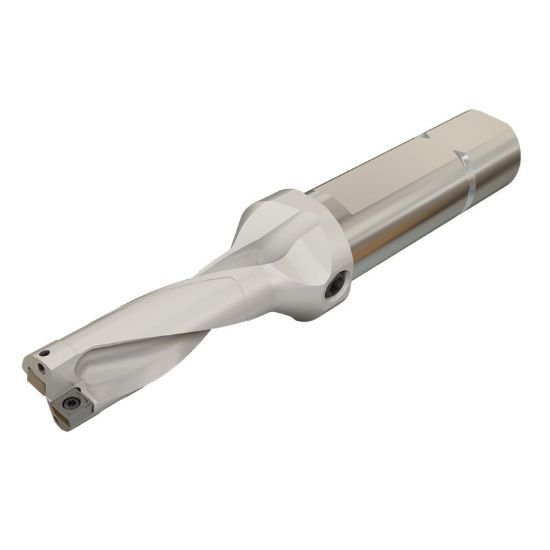

Iscar DR1281-3843-125-09-3D-N 1.281" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201847 ISO: DR1281-3843-125-09-3D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111566
Vendor: Sussex Tool and Supply
$754.27

Description

ISCAR 3201847 1.281" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 8.1400 206.76MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2813 32.54MM - 1-9/32
Flute Length 3.8400 97.54MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 1.2810 32.54MM - 1-9/32
Cut Dia Max 1.3200 33.53MM
Materials & Finish
Tool Material Steel
