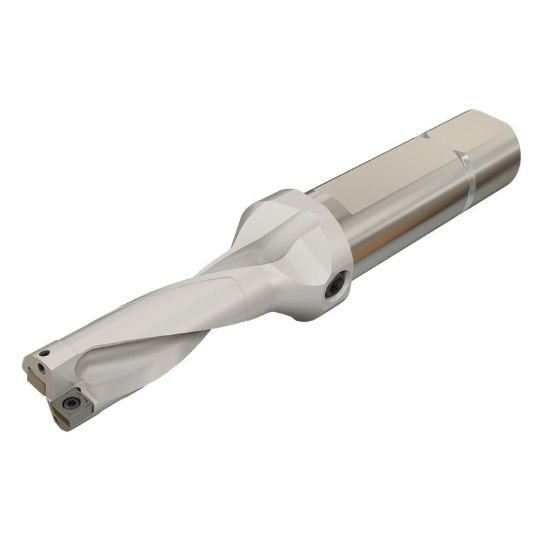

Picture of Iscar DR1250-3750-125-09-3D-N 1-1/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Iscar DR1250-3750-125-09-3D-N 1-1/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201846 ISO: DR1250-3750-125-09-3D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111565
Vendor: Sussex Tool and Supply
$754.27

Description

ISCAR 3201846 1-1/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 8.0500 204.47MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.2500 31.75MM - 1-1/4
Flute Length 3.7500 95.25MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.2800 32.51MM
Materials & Finish
Tool Material Steel
