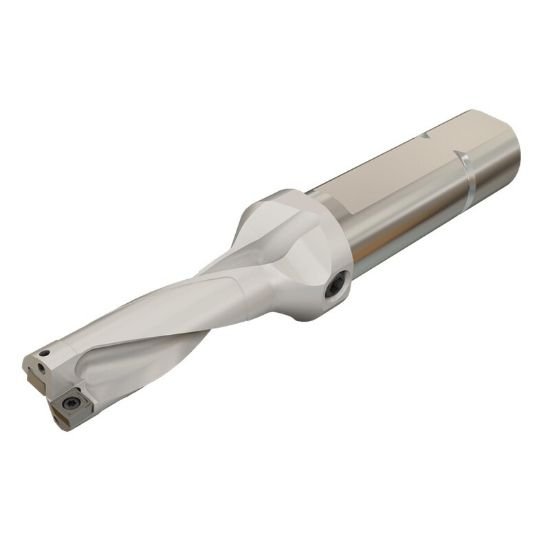

Iscar DR1062-3186-125-09-3D-N 1.062" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201842 ISO: DR1062-3186-125-09-3D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111561
Vendor: Sussex Tool and Supply
$696.86

Description

ISCAR 3201842 1.062" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 7.4900 190.25MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.0156 25.79MM - 1-1/64
Flute Length 3.1900 81.03MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 1.0156 25.79MM - 1-1/64
Cut Dia Max 1.2010 30.51MM
Materials & Finish
Tool Material Steel
