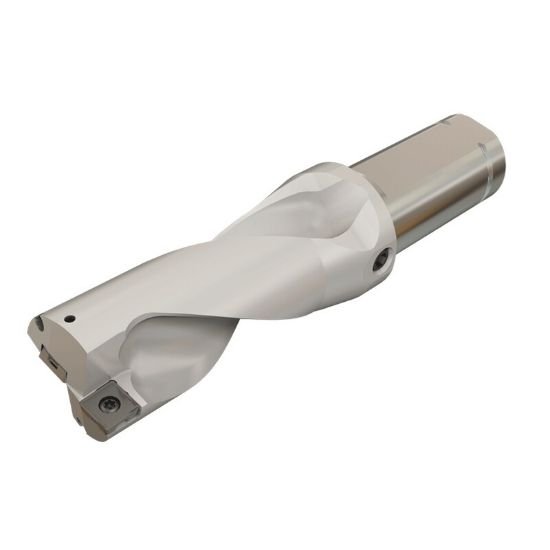

Picture of Iscar DR0984-1969-125-09-2D-N 0.984" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD

Iscar DR0984-1969-125-09-2D-N 0.984" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD

Part Number: ISC3201794 ISO: DR0984-1969-125-09-2D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111532
Vendor: Sussex Tool and Supply
$602.21

Description

ISCAR 3201794 0.984" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 6.2700 159.26MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 0.9844 25.00MM - 63/64
Flute Length 1.9700 50.04MM
Dia Deep 2.0x Dia
Performance & Capacity
Cut Dia Min 0.9843 25.00MM - 63/64
Cut Dia Max 1.1420 29.01MM
Materials & Finish
Tool Material Steel
