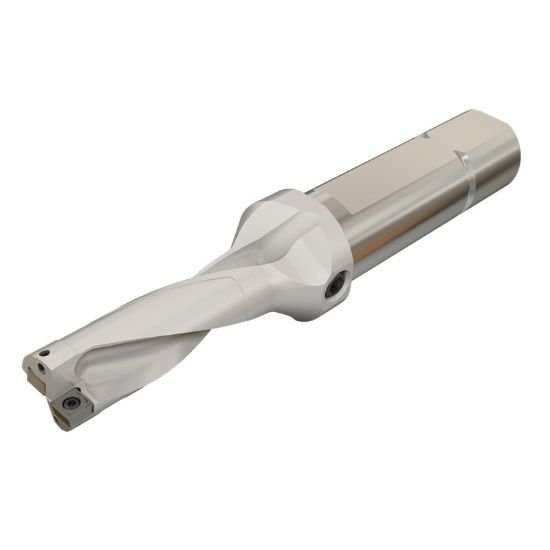

Picture of Iscar DR0937-2813-100-07-3D-N 0.937" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Iscar DR0937-2813-100-07-3D-N 0.937" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201401 ISO: DR0937-2813-100-07-3D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111467
Vendor: Sussex Tool and Supply
$582.49
ISCAR 3201401 0.937" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.6800 169.67MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.9370 23.80MM
Type Of Tool Drill
Flute Length 2.8100 71.37MM
Cut Dia Min 0.9370 23.80MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Cut Dia Max 1.0200 25.91MM
