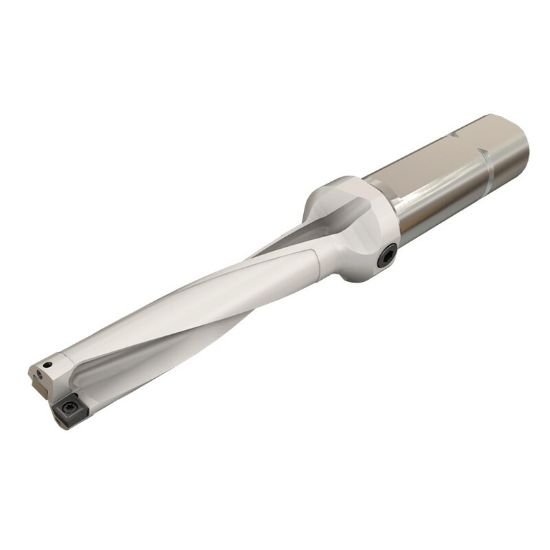

Picture of Iscar DR0906-4527-100-07-5D-N 0.906" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0906-4527-100-07-5D-N 0.906" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3260144 ISO: DR0906-4527-100-07-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112025
Vendor: Sussex Tool and Supply
$782.50

Description

ISCAR 3260144 0.906" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 8.3800 212.85MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.9063 23.02MM - 29/32
Flute Length 4.5300 115.06MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.9062 23.02MM - 29/32
Cut Dia Max 0.9790 24.87MM
Materials & Finish
Tool Material Steel
