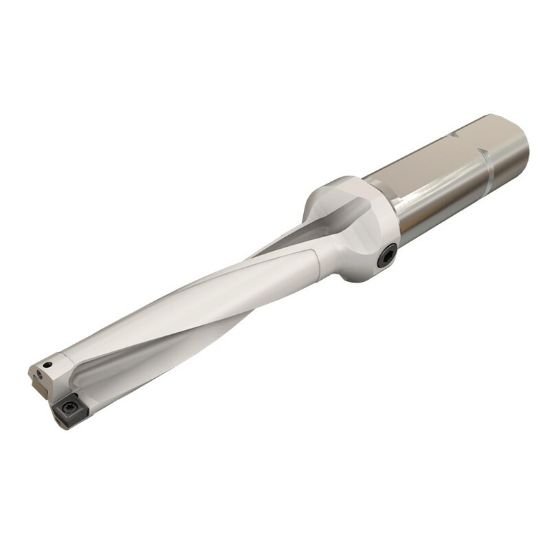

Picture of Iscar DR0875-4370-100-07-5D-N 7/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0875-4370-100-07-5D-N 7/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202587 ISO: DR0875-4370-100-07-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111648
Vendor: Sussex Tool and Supply
$782.50

Description

ISCAR 3202587 7/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 8.2200 208.79MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8750 22.23MM - 7/8
Flute Length 4.3700 111.00MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.8750 22.23MM - 7/8
Cut Dia Max 0.9590 24.36MM
Materials & Finish
Tool Material Steel
