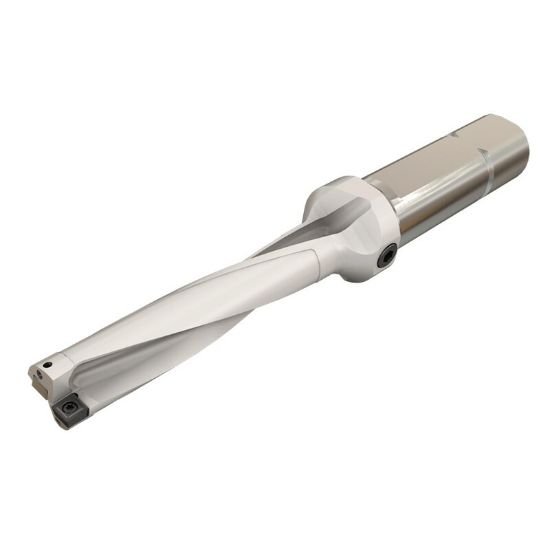

Picture of Iscar DR0812-4055-100-06-5D-N 0.812" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0812-4055-100-06-5D-N 0.812" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202585 ISO: DR0812-4055-100-06-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111646
Vendor: Sussex Tool and Supply
$782.50

Description

ISCAR 3202585 0.812" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 7.9100 200.91MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8125 20.64MM - 13/16
Flute Length 4.0600 103.12MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.8125 20.64MM - 13/16
Cut Dia Max 0.8400 21.34MM
Materials & Finish
Tool Material Steel
