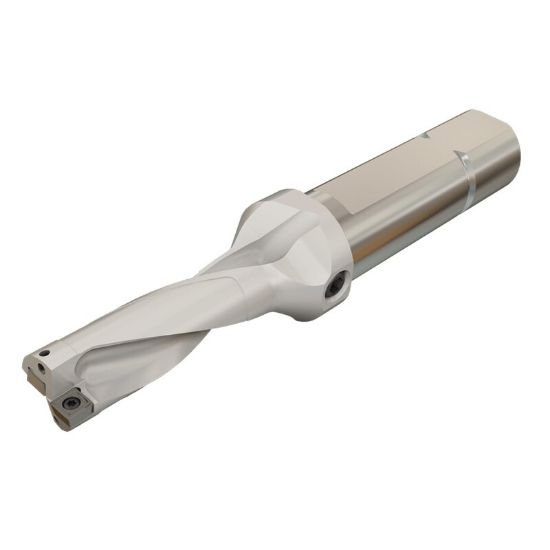

Picture of Iscar DR0812-2438-100-06-3D-N 0.812" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Iscar DR0812-2438-100-06-3D-N 0.812" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201397 ISO: DR0812-2438-100-06-3D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111463
Vendor: Sussex Tool and Supply
$621.31

Description

ISCAR 3201397 0.812" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 6.3000 160.02MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.8125 20.64MM - 13/16
Flute Length 2.4400 61.98MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.8125 20.64MM - 13/16
Cut Dia Max 0.8500 21.59MM
Materials & Finish
Tool Material Steel
