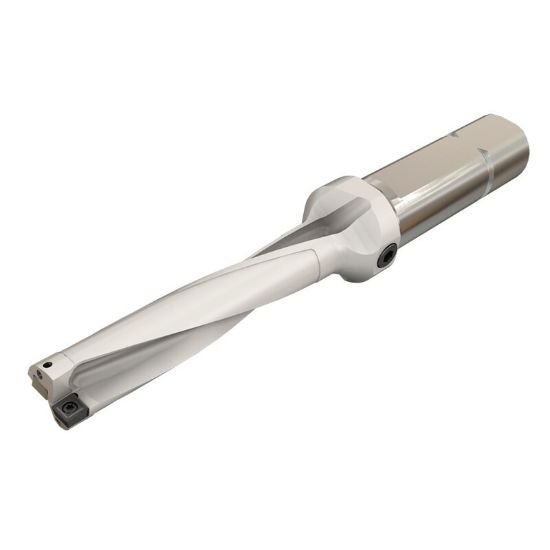

Picture of Iscar DR0781-3898-100-06-5D-N 0.781" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0781-3898-100-06-5D-N 0.781" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3260143 ISO: DR0781-3898-100-06-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112024
Vendor: Sussex Tool and Supply
$708.96

Description

ISCAR 3260143 0.781" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 7.7500 196.85MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7813 19.85MM - 25/32
Flute Length 3.9000 99.06MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.7810 19.84MM - 25/32
Cut Dia Max 0.8210 20.84MM
Materials & Finish
Tool Material Steel
