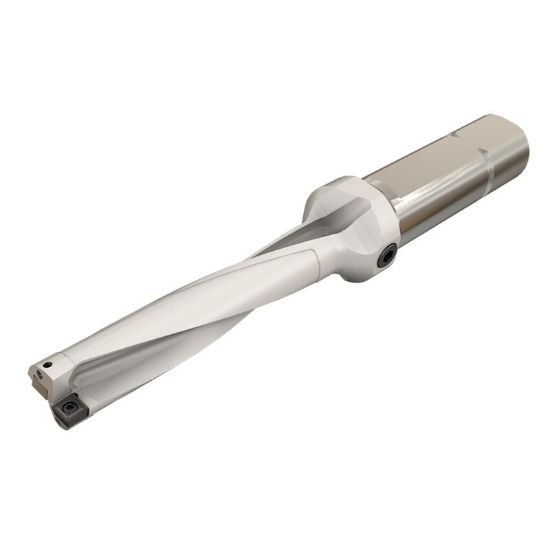

Picture of Iscar DR0750-3760-100-06-5D-N 3/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0750-3760-100-06-5D-N 3/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202583 ISO: DR0750-3760-100-06-5D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111645
Vendor: Sussex Tool and Supply
$664.65
ISCAR 3202583 3/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 7.5900 192.79MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool Drill
Flute Length 3.7600 95.50MM
Cut Dia Min 0.7500 19.05MM - 3/4
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Cut Dia Max 0.8010 20.35MM
