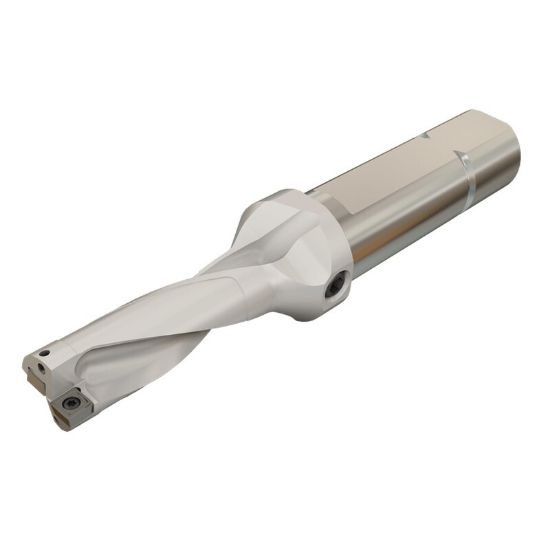

Picture of Iscar DR0750-2250-100-06-3D-N 3/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Iscar DR0750-2250-100-06-3D-N 3/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201364 ISO: DR0750-2250-100-06-3D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111451
Vendor: Sussex Tool and Supply
$530.55
ISCAR 3201364 3/4" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.1200 155.45MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool Drill
Flute Length 2.2500 57.15MM
Cut Dia Min 0.7500 19.05MM - 3/4
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Cut Dia Max 0.8190 20.80MM
