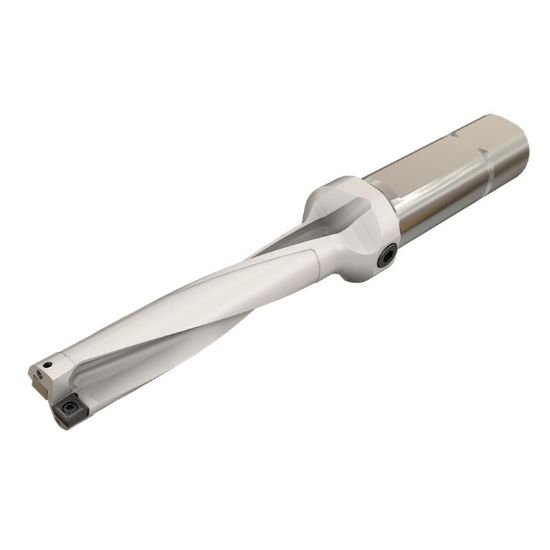

Picture of Iscar DR0734-3661-100-06-5D-N 0.734" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0734-3661-100-06-5D-N 0.734" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3260142 ISO: DR0734-3661-100-06-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112023
Vendor: Sussex Tool and Supply
$708.96

Description

ISCAR 3260142 0.734" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 7.5200 191.01MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7344 18.65MM - 47/64
Flute Length 3.6600 92.96MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.7344 18.65MM - 47/64
Cut Dia Max 0.7910 20.09MM
Materials & Finish
Tool Material Steel
