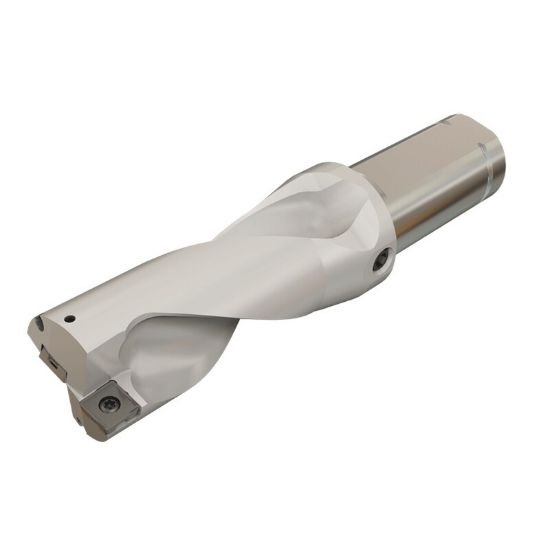

Picture of Iscar DR0734-1469-100-06-2D-N 0.734" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD

Iscar DR0734-1469-100-06-2D-N 0.734" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD

Part Number: ISC3201358 ISO: DR0734-1469-100-06-2D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111445
Vendor: Sussex Tool and Supply
$537.79

Description

ISCAR 3201358 0.734" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 2xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 5.3300 135.38MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 0.7344 18.65MM - 47/64
Flute Length 1.4700 37.34MM
Dia Deep 2.0x Dia
Performance & Capacity
Cut Dia Min 0.7344 18.65MM - 47/64
Cut Dia Max 0.8110 20.60MM
Materials & Finish
Tool Material Steel
