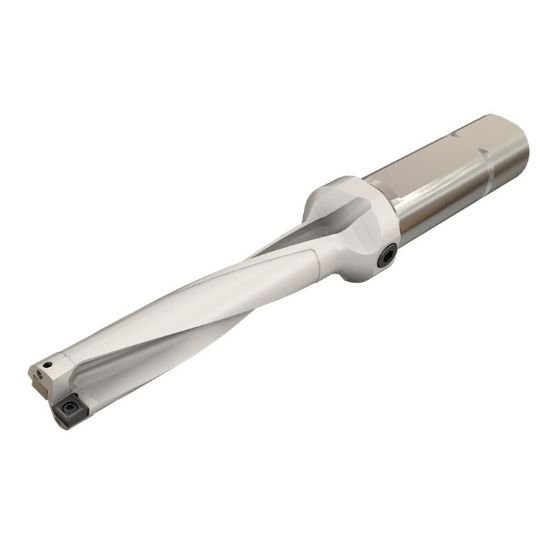

Picture of Iscar DR0703-3524-075-05-5D-N 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0703-3524-075-05-5D-N 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202580 ISO: DR0703-3524-075-05-5D-N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1111643
Vendor: Sussex Tool and Supply
$664.65
ISCAR 3202580 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 7.3300 186.18MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7031 17.86MM - 45/64
Type Of Tool Drill
Flute Length 3.5200 89.41MM
Cut Dia Min 0.7031 17.86MM - 45/64
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Cut Dia Max 0.7270 18.47MM
