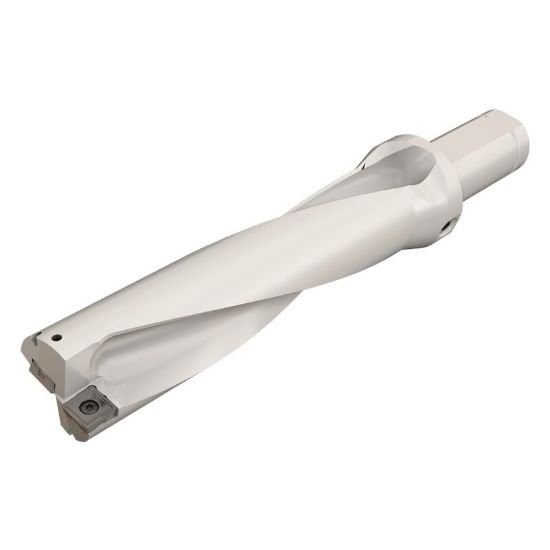

Picture of Iscar DR0703-2812-075-05-4D-N 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Iscar DR0703-2812-075-05-4D-N 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Part Number: ISC3201367 ISO: DR0703-2812-075-05-4D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111454
Vendor: Sussex Tool and Supply
$650.59

Description

ISCAR 3201367 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 6.6400 168.66MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7031 17.86MM - 45/64
Flute Length 2.8100 71.37MM
Dia Deep 4.0x Dia
Performance & Capacity
Cut Dia Min 0.7031 17.86MM - 45/64
Cut Dia Max 0.7360 18.69MM
Materials & Finish
Tool Material Steel
