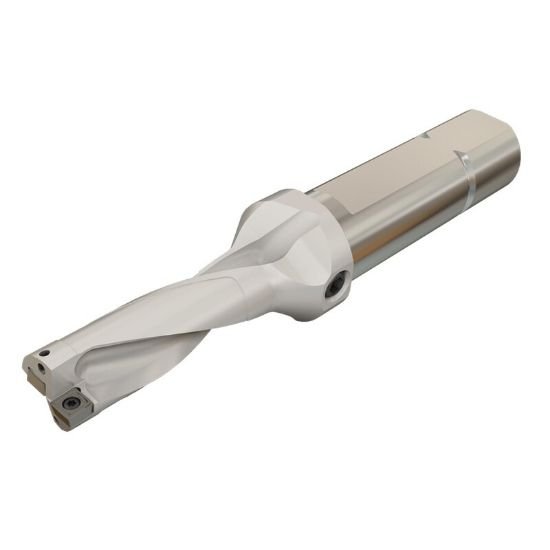

Picture of Iscar DR0703-2109-075-05-3D-N 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Iscar DR0703-2109-075-05-3D-N 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3201362 ISO: DR0703-2109-075-05-3D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111449
Vendor: Sussex Tool and Supply
$565.92

Description

ISCAR 3201362 0.703" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 5.9400 150.88MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.7031 17.86MM - 45/64
Flute Length 2.1100 53.59MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.7031 17.86MM - 45/64
Cut Dia Max 0.7360 18.69MM
Materials & Finish
Tool Material Steel
