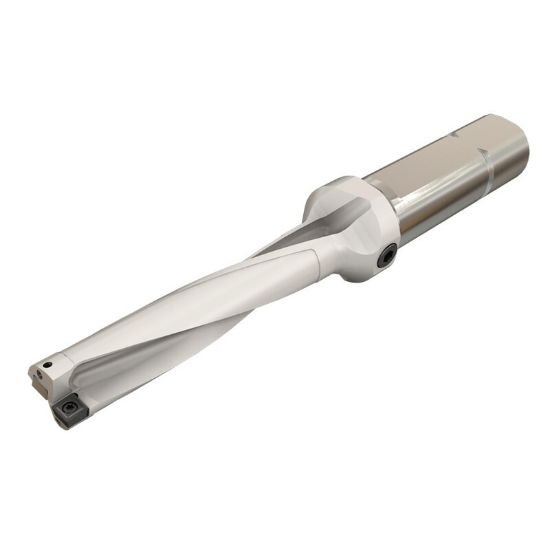

Picture of Iscar DR0688-3445-075-05-5D-N 0.688" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0688-3445-075-05-5D-N 0.688" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202579 ISO: DR0688-3445-075-05-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111642
Vendor: Sussex Tool and Supply
$708.96

Description

ISCAR 3202579 0.688" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 7.2800 184.91MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6890 17.50MM
Flute Length 3.4500 87.63MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.6890 17.50MM
Cut Dia Max 0.7180 18.24MM
Materials & Finish
Tool Material Steel
