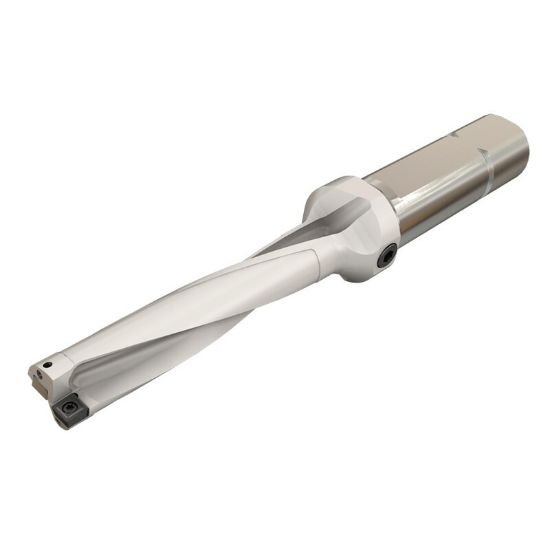

Picture of Iscar DR0625-3130-075-05-5D-N 5/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0625-3130-075-05-5D-N 5/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202577 ISO: DR0625-3130-075-05-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111640
Vendor: Sussex Tool and Supply
$708.96

Description

ISCAR 3202577 5/8" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 6.9700 177.04MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Flute Length 3.1300 79.50MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Cut Dia Max 0.6790 17.25MM
Materials & Finish
Tool Material Steel
