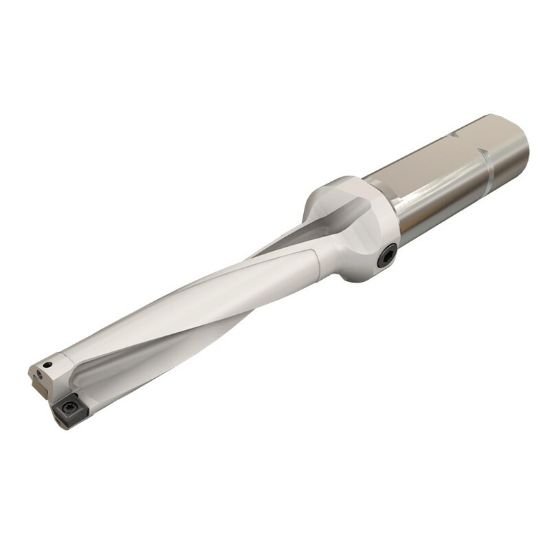

Picture of Iscar DR0578-2894-075-05-5D-N 0.578" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0578-2894-075-05-5D-N 0.578" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202575 ISO: DR0578-2894-075-05-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111638
Vendor: Sussex Tool and Supply
$674.69

Description

ISCAR 3202575 0.578" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 6.7400 171.20MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.5781 14.68MM - 37/64
Flute Length 2.8900 73.41MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.5781 14.68MM - 37/64
Cut Dia Max 0.6490 16.48MM
Materials & Finish
Tool Material Steel
