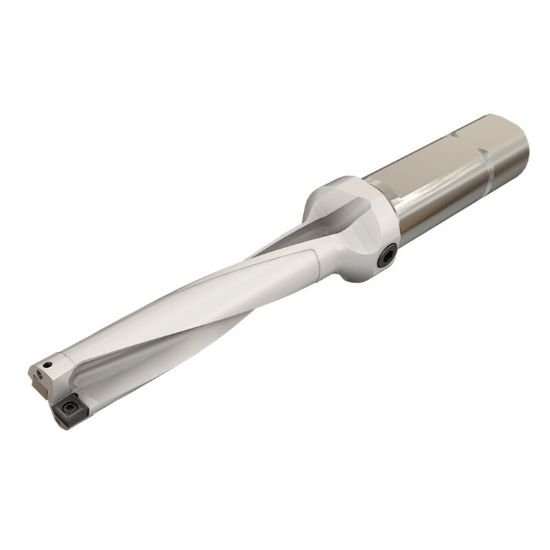

Picture of Iscar DR0562-2815-075-05-5D-N 0.562" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Iscar DR0562-2815-075-05-5D-N 0.562" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD

Part Number: ISC3202574 ISO: DR0562-2815-075-05-5D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111637
Vendor: Sussex Tool and Supply
$674.69

Description

ISCAR 3202574 0.562" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 6.6600 169.16MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.5625 14.29MM - 9/16
Flute Length 2.8200 71.63MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.5625 14.29MM - 9/16
Cut Dia Max 0.6390 16.23MM
Materials & Finish
Tool Material Steel
