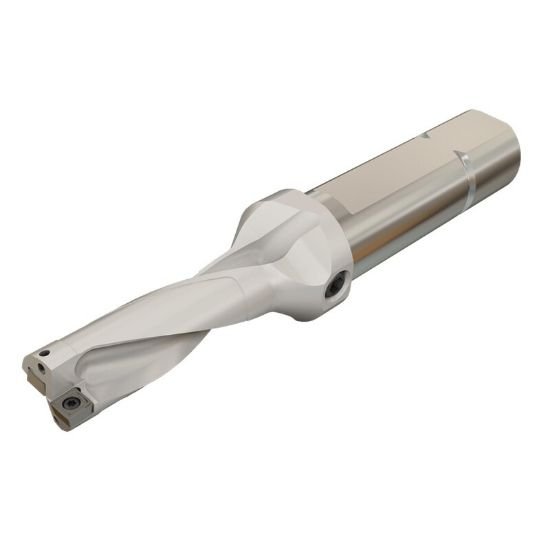

Picture of Iscar DR0531-1593-063-04-3D-N 0.531" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Iscar DR0531-1593-063-04-3D-N 0.531" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3202561 ISO: DR0531-1593-063-04-3D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111633
Vendor: Sussex Tool and Supply
$538.75

Description

ISCAR 3202561 0.531" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 5.3400 135.64MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5313 13.50MM - 17/32
Flute Length 1.5900 40.39MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.5315 13.50MM
Cut Dia Max 0.5500 13.97MM
Materials & Finish
Tool Material Steel
