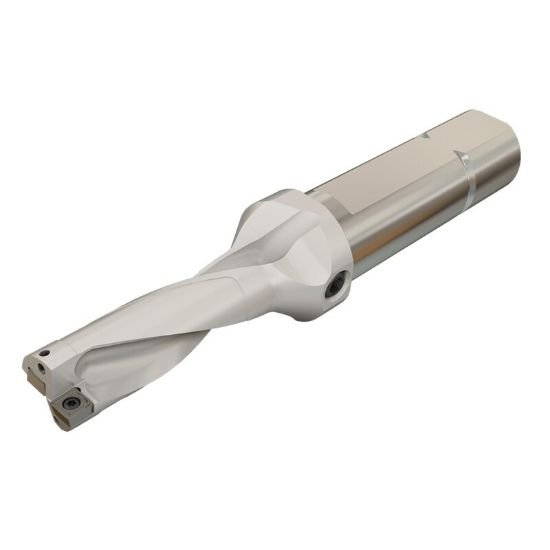

Picture of Iscar DR0500-1500-063-04-3D-N 1/2" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Iscar DR0500-1500-063-04-3D-N 1/2" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD

Part Number: ISC3202559 ISO: DR0500-1500-063-04-3D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111632
Vendor: Sussex Tool and Supply
$538.75

Description

ISCAR 3202559 1/2" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 5.2500 133.35MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Flute Length 1.5000 38.10MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Cut Dia Max 0.5110 12.98MM
Materials & Finish
Tool Material Steel
