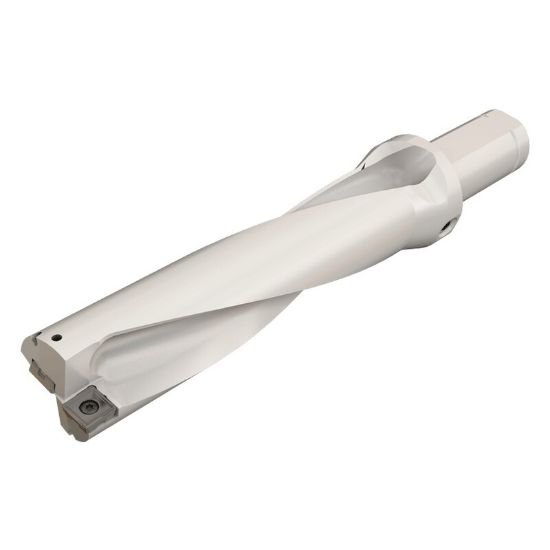

Picture of Iscar DR0469-1876-063-04-4D-N 0.469" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Iscar DR0469-1876-063-04-4D-N 0.469" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD

Part Number: ISC3202562 ISO: DR0469-1876-063-04-4D-N
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111634
Vendor: Sussex Tool and Supply
$621.31

Description

ISCAR 3202562 0.469" Indexable Square Insert Drills with Coolant Holes, Drilling Depth 4xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 5.6200 142.75MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4685 11.90MM
Flute Length 1.8800 47.75MM
Dia Deep 4.0x Dia
Performance & Capacity
Cut Dia Min 0.4685 11.90MM
Cut Dia Max 0.4900 12.45MM
Materials & Finish
Tool Material Steel
