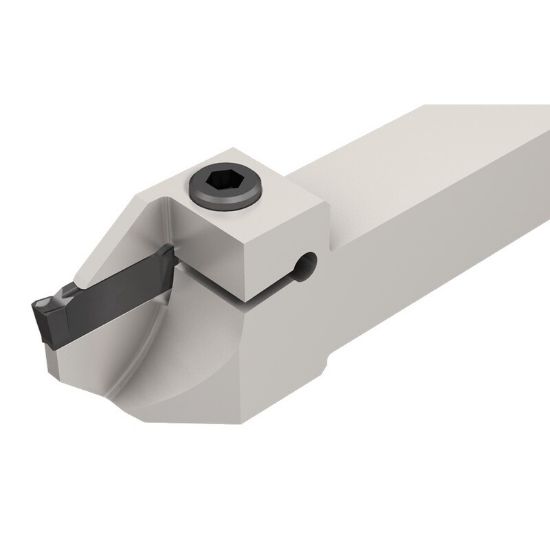

Picture of ISCAR DGTL 25.4BC-3D40 Cut Off,Grooving Stick Tool 1.000 Tool

ISCAR DGTL 25.4BC-3D40 Cut Off,Grooving Stick Tool 1.000 Tool

ANSI: DGTL 25.4BC-3D40

ISO: DGTL 25.4BC-3D40

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2301965
Delivery date: 3-5 days
$250.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Important: 1.4 mm (.055") width inserts should be used only on tools for 1.4 mm specific width tools DGN/R/L 1 mm (.039") inserts can also be mounted into pocket sizes 2 and 3.

Details

Integral-shank, reinforced (with and without coolant holes) parting and grooving tools for double-ended inserts.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 1 Cut Off, Grooving
Insert Type Positive
Additional Key Information 2 Stick Tool
Additional Key Information 3 Clamp Down
Package Size 1
Insert/Tool Tool
Application Ext.Grooving, Parting
Insert Application General Purpose
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Machine Side STICK TOOL1.0000
Insert Size Ic 3
Overall Len 5.5000 139.70MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting Width 0.1180 3.00MM
Depth Of Cut Max 0.7870
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Cutting & Machining Properties
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG
Hand R/L Left
