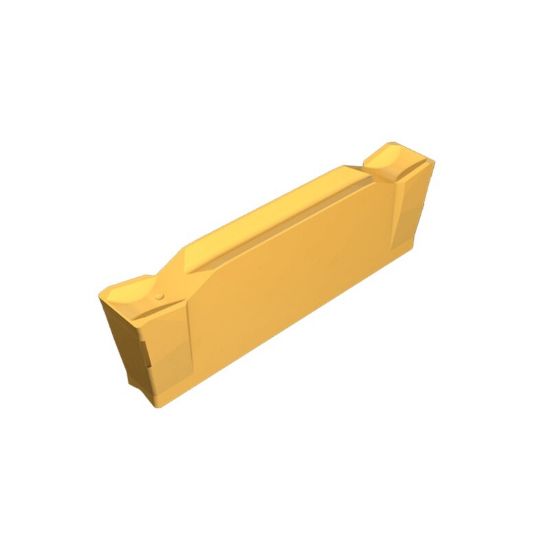

ISCAR DGN 4003C IC30N Cut Off,Grooving Insert 0.008 Corner Radius 0.122 Wide

ANSI: DGN 4003C IC30N

ISO: DGN 4003C IC30N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6002529
Delivery date: 3-5 days
$29.45
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Double-Sided Parting Inserts for Parting and Grooving Bars, Hard Materials and Tough Applications

File Downloads

DXFSTPSTPL

Grade and Coating Description

Cermet grade. Provides excellent resistance to wear and plastic deformation even at high cutting speeds and medium feeds. Useful for semi finishing and finishing.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Additional Key Information 1 Cut Off, Grooving
Application Grooving & Parting Insert
Material # Material#8, Material#4
Insert Type Positive
Additional Key Information 3 Clamp Down
Package Size 10
Sold by Pieces 10
Insert Application General Purpose
Grade IC30N
Additional Key Information 2 Insert
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Cutting Width 0.1220 3.10MM
Corner Radius 0.0080 0.20MM
Depth Of Cut Max 0.7090
Cut Rating <48HRC Steel, Stainless Steel
Insert Size Ic 4
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG
