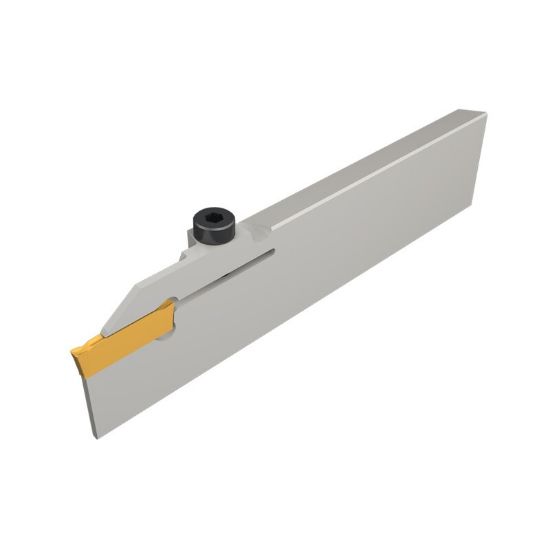

Picture of ISCAR DGFHL 26B-3TR-D36 Cut Off,Grooving Blade 1.240 Tool

ISCAR DGFHL 26B-3TR-D36 Cut Off,Grooving Blade 1.240 Tool

ANSI: DGFHL 26B-3TR-D36

ISO: DGFHL 26B-3TR-D36

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2394483
Delivery date: 3-5 days
$254.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Double- and single-ended, parting and grooving reinforced blades for double-ended DGN inserts. For Traub and Index machines.

Insert limit is Tmax=.709". If deeper penetration is required, the insert should be modified into single-ended by the user DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified-click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Cut Off, Grooving
Additional Key Information 4 Modular Tools
Shipping State Texas
Insert/Tool Tool
Additional Key Information 2 Blade
Application Ext.Grooving, Parting
Insert Application General Purpose
Insert Type Positive
Additional Key Information 3 Clamp Down
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 3
Tool Material Steel
Overall Len 4.3310 110.01MM
Machine Side Connection Type Blade
Cutting Width 0.1180 3.00MM
Machine Side BLADE1.2400
Machine Side Connection Size 1.2400 31.50MM
Cutting & Machining Properties
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Left
