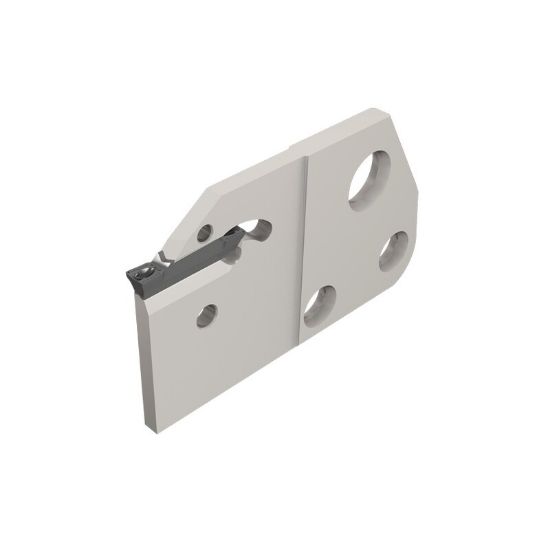

Picture of ISCAR DGAN 4NCut Off,Grooving Adapter Blade

ISCAR DGAN 4NCut Off,Grooving Adapter Blade

ANSI: DGAN 4N

ISO: DGAN 4N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2395846
Delivery date: 3-5 days
$129.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Parting and grooving adapters for DO-GRIP double-ended inserts

DG..1.0 insert can be mounted into pocket sizes 2 and 3, in which case the pocket width has to be modified -click on "More Info".

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert/Tool Tool
Insert Type Positive
Additional Key Information 3 Clamp Down
Application Ext.Grooving, Parting
Additional Key Information 1 Grooving, Cut Off
Additional Key Information 4 Modular Tools
Sold by Pieces 1
Additional Key Information 2 Adapter Blade
Shipping State Texas
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Overall Len 1.9880 50.50MM
Machine Side MOD ISCAR MHD
Machine Side Connection Type Modular
Cutting Width 0.1570 3.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG
Extractor EDG 33A
