  • ISCAR DFN 1339-1071-125A-8D-IQ 1.339" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

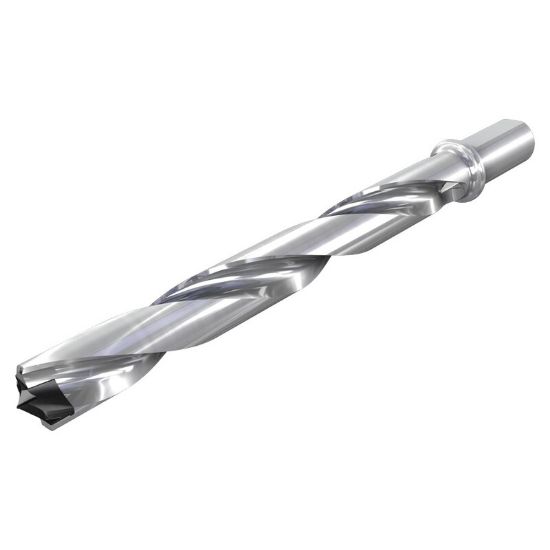

Picture of ISCAR DFN 1339-1071-125A-8D-IQ 1.339" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

ISCAR DFN 1339-1071-125A-8D-IQ 1.339" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

ISO: DFN 1339-1071-125A-8D-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3203602
Delivery date: 3-5 days
$892.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Indexable Drill
Application Drilling, Single Insert Drilling
Sold by Pieces 1
Shipping State Texas
Additional Key Information 2 Single Insert
Additional Key Information 3 Drill
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 1.3386 34.00MM
Machine Side BBAR1.2500,WELDON1.2500
Machine Side Connection Size 1.2500 31.75MM
Dia Deep 8.0XD
Flute Length 10.7100 272.03MM
Machine Side Connection Type Boring Bar,Weldon
Cut Dia Min 1.3386 34.00MM
Overall Len 14.6100 371.09MM
Cut Dia Max 1.3740 34.90MM
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Steel
Industry-Specific Applications
Job Shop Yes
