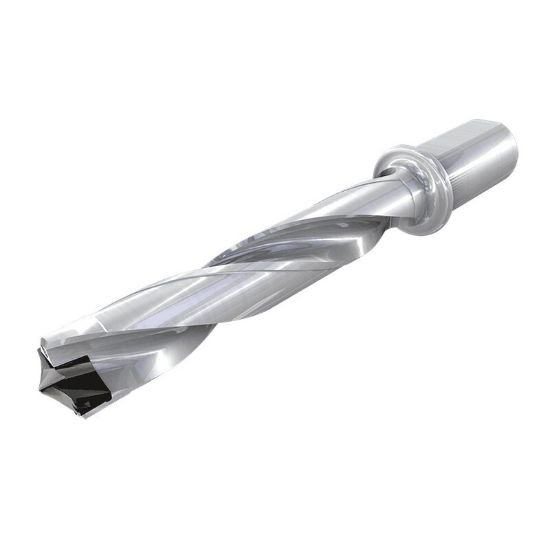

Picture of Iscar DFine 1535-767-125A-5D-IQ 1.535" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar DFine 1535-767-125A-5D-IQ 1.535" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3260209

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112043
Vendor: Sussex Tool and Supply
$886.00
Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Cutter Type Drill
Overall Length 11.8000 299.72MM
Machine Side (Toolpost) WELDON1.2500, BBAR1.2500
Cutting Edge Definition including cutting tools, Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, dies, and others., knives, hand tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Weldon, Boring Bar
Flutes Or Inserts 2
Shipping State TEXAS
Type Indexable Drill Single Insert
Family Group ChamIQDrill 700 Line
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 1.5354 39.00MM
Cut Diameter Min 1.5354 39.00MM
Coolant Thru Thru Coolant
Cut Diameter Max 1.5750 40.01MM
Drill Type Indexable Drill
Made In USA No
Flute Length 7.6700 194.82MM
Diameter Deep 5.0x Dia
