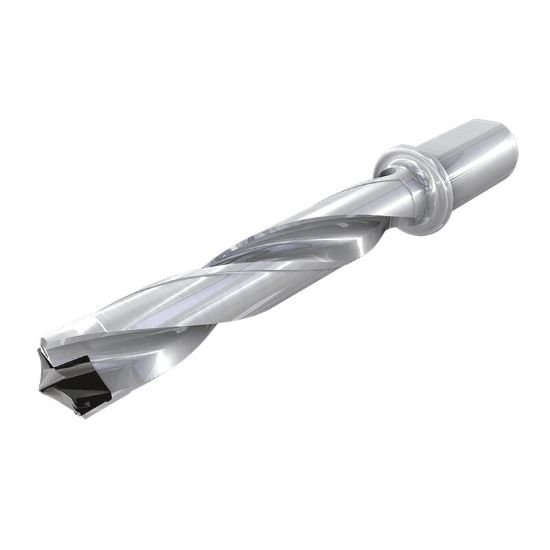

Picture of Iscar DFine 1535-460-125A-3D-IQ 1.535" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Iscar DFine 1535-460-125A-3D-IQ 1.535" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD

Part Number: ISC3203402 ISO: DFN 1535-460-125A-3D-IQ
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111913
Vendor: Sussex Tool and Supply
$741.60

Description

ISCAR 3203402 1.535" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 9.4200 239.27MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.5354 39.00MM
Flute Length 4.6000 116.84MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 1.5354 39.00MM
Cut Dia Max 1.5750 40.01MM
Materials & Finish
Tool Material Steel
