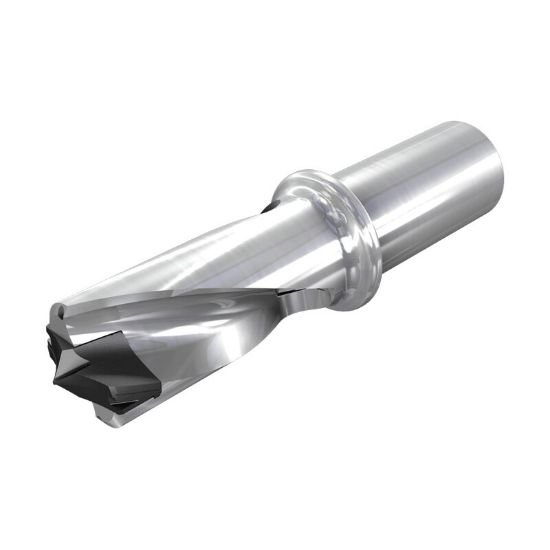

Picture of Iscar DFine 1496-224-125A-1.5D-IQ 1.496" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar DFine 1496-224-125A-1.5D-IQ 1.496" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3260026 ISO: DFN 1496-224-125A-1.5D-IQ
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111991
Vendor: Sussex Tool and Supply
$650.59

Description

ISCAR 3260026 1.496" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 6.3300 160.78MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.4961 38.00MM
Flute Length 2.2400 56.90MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 1.4961 38.00MM
Cut Dia Max 1.5310 38.89MM
Materials & Finish
Tool Material Steel
