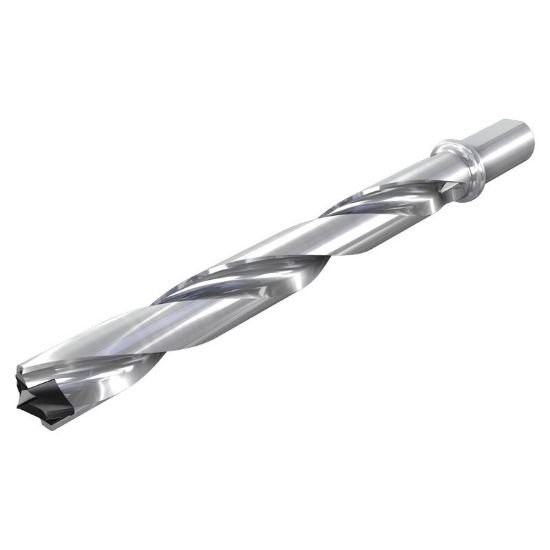

Picture of Iscar DFine 1496-1196-125A-8D-IQ 1.496" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Iscar DFine 1496-1196-125A-8D-IQ 1.496" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Part Number: ISC3260027 ISO: DFN 1496-1196-125A-8D-IQ
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111992
Vendor: Sussex Tool and Supply
$990.82

Description

ISCAR 3260027 1.496" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 16.0500 407.67MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.4961 38.00MM
Flute Length 11.9600 303.78MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 1.4961 38.00MM
Cut Dia Max 1.5310 38.89MM
Materials & Finish
Tool Material Steel
