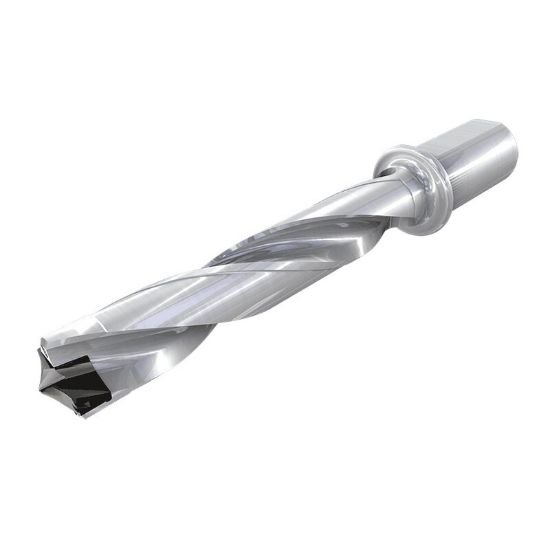

Picture of Iscar DFine 1457-728-125A-5D-IQ 1.457" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar DFine 1457-728-125A-5D-IQ 1.457" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3260207 ISO: DFN 1457-728-125A-5D-IQ
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112041
Vendor: Sussex Tool and Supply
$824.64

Description

ISCAR 3260207 1.457" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 11.3200 287.53MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.4567 37.00MM
Flute Length 7.2800 184.91MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 1.4567 37.00MM
Cut Dia Max 1.4920 37.90MM
Materials & Finish
Tool Material Steel
