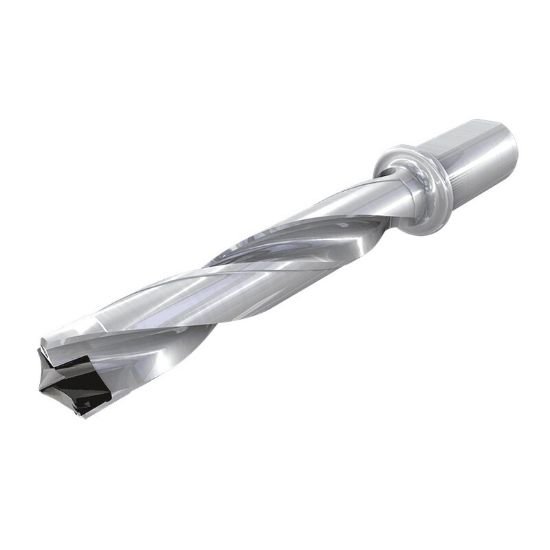

Picture of Iscar DFine 1417-708-125A-5D-IQ 1.417" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar DFine 1417-708-125A-5D-IQ 1.417" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3260206 ISO: DFN 1417-708-125A-5D-IQ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112040
Vendor: Sussex Tool and Supply
$776.00
ISCAR 3260206 1.417" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 11.0800 281.43MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.4173 36.00MM
Type Of Tool Drill
Flute Length 7.0800 179.83MM
Cut Dia Min 1.4173 36.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 1.4530 36.91MM
