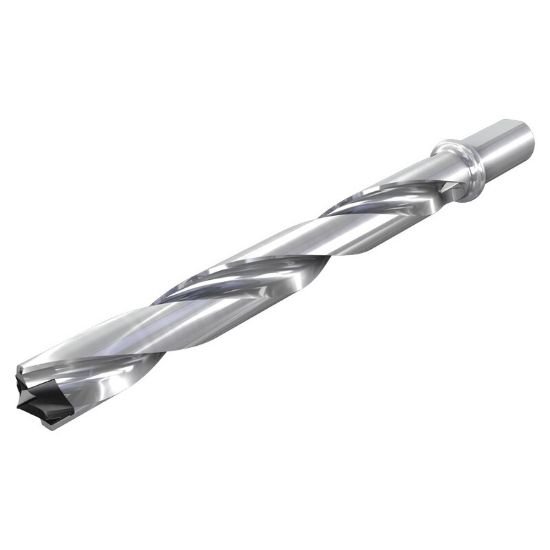

Picture of Iscar DFine 1417-1133-125A-8D-IQ 1.417" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Iscar DFine 1417-1133-125A-8D-IQ 1.417" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD

Part Number: ISC3203614 ISO: DFN 1417-1133-125A-8D-IQ
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1111971
Vendor: Sussex Tool and Supply
$990.82

Description

ISCAR 3203614 1.417" Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 8xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 15.3300 389.38MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.4173 36.00MM
Flute Length 11.3300 287.78MM
Dia Deep 8.0x Dia
Performance & Capacity
Cut Dia Min 1.4173 36.00MM
Cut Dia Max 1.4530 36.91MM
Materials & Finish
Tool Material Steel
